In core scenarios such as industrial automation, sensor networks, and new energy equipment, the selection of M12 connectors directly determines the stability, lifespan, and operation and maintenance costs of the equipment. As a professional manufacturer specializing in industrial connectors for 13 years, Octopusconn (website: https://www.octopusconn.com/ ) relies on 20+ design patents, a 3000㎡ production base, and a 20+ person professional R&D team. By integrating industry-leading technologies and practical experience, Octopusconn has created this selection manual to help you precisely match the requirements of industrial scenarios, avoid selection mistakes, and understand Octopusconn's cost-effective M12 connector solutions.

Before making a selection, it is essential to clearly understand the following three key prerequisites (to avoid making a hasty choice):

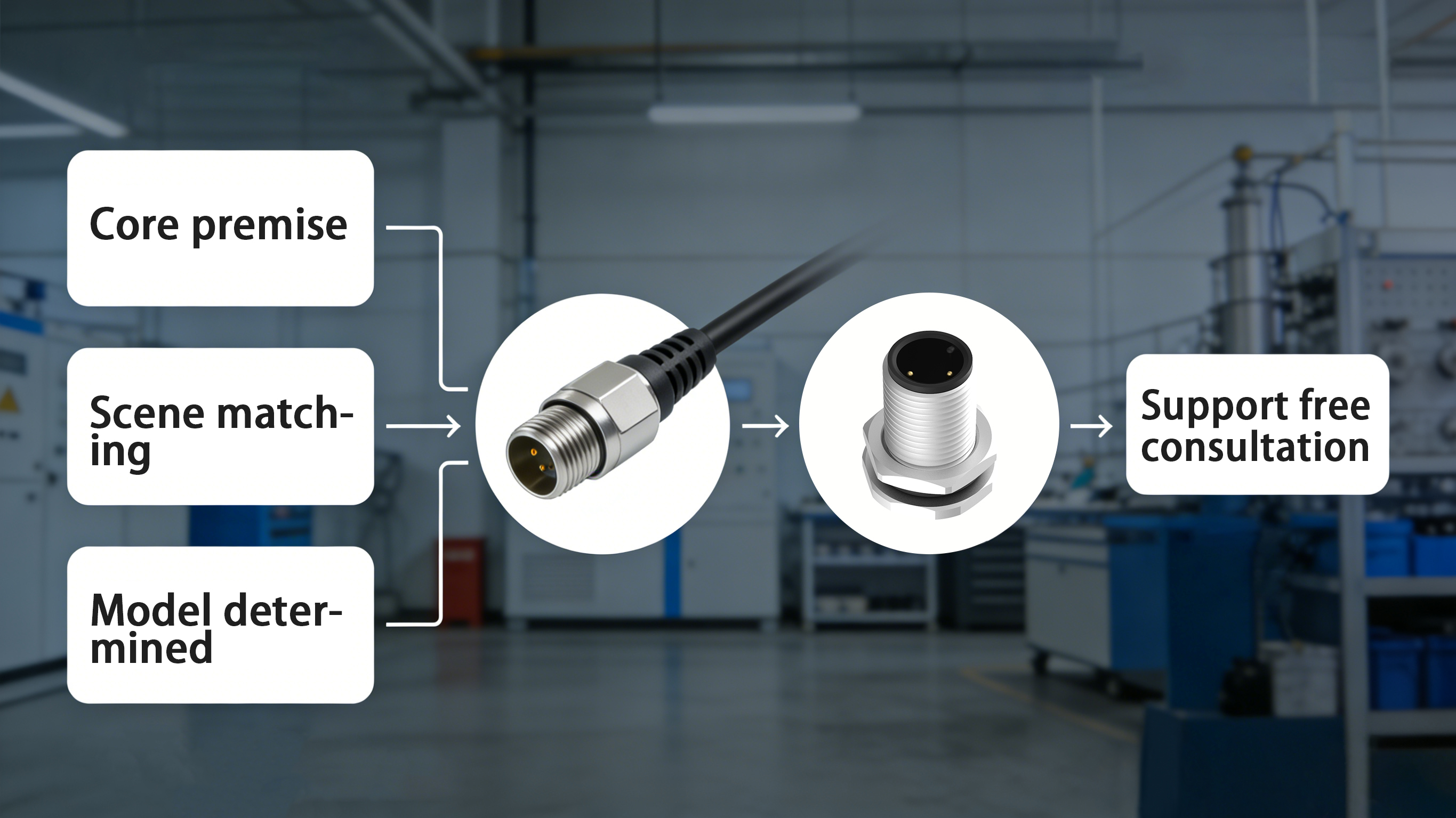

The core of the selection process is "demand matching". Before choosing the M12 connector, it is necessary to clearly define the following three key pieces of information, which are also the primary communication points for the Octopusconn technical team when receiving customer inquiries:

1. Lock down the application scenarios and environmental requirements

The severity of the industrial environment directly determines the protection level of the connector and the material selection:

• Regular workshop environment (no moisture, no dust): The preferred protection level is IP67. The enclosure is made of PA9T plastic material, balancing cost and practicality. It corresponds to the basic Octopusconn M12 series.
• Damp/outdoor scenarios (such as photovoltaic power stations, outdoor sensors): It is necessary to upgrade to IP68 protection. Octopusconn can withstand -40℃ to +85℃ high-low temperature cycles.
• Harsh operating conditions (chemical workshop, offshore, food and beverage rinsing scenarios): It is recommended to use a brass-plated nickel housing, which is corrosion-resistant and can withstand high-pressure rinsing. The Octopusconn series of products have passed the salt spray test (48 hours without corrosion).
• Vibration environment (robot arm, AGV vehicle): A threaded locking anti-loosening design should be selected. The Octopusconn M12 connector adopts a double-locking structure, and during vibration tests (10-500Hz), there is no signal interruption.

2. Clarify transmission requirements: signals / electricity / data

Different transmission types correspond to the encoding and pin specifications of the M12 connector, which is the core basis for selection:

• Power transmission (such as power supply for sensors): Choose B code or 2Pin/3Pin specification. The rated current must be ≥ the working current of the equipment. The Octopusconn M12 connector supports a maximum current of 10A, meeting the power supply requirements for industrial equipment.
• Common signal transmission (such as switch quantity and analog quantity signals): Preferentially adopts A-code 4Pin/5Pin specification, with contact resistance ≤ 20mΩ. The signal transmission is stable, compatible with the Octopusconn standard version M12 connector, and has outstanding cost performance.
• High-speed data transmission (such as PROFINET, EtherCAT industrial Ethernet): X-code or D-code must be selected. The 8-pin specification supports transmission rates up to 10 Gigabit. The Octopusconn M12 connector has a fully shielded design, with excellent anti-interference capabilities. It has been applied in data transmission projects of intelligent factories.

3. Confirm installation and wiring restrictions

The on-site installation conditions determine the installation method and structural design of the connector, and it is necessary to confirm these in advance:

• Installation space: For narrow spaces (such as inside equipment), choose the elbow type (110°/90°). Octopusconn offers various elbow models including 110° welded type and 90° crimped type, which are suitable for compact layouts.
• Wiring method: Fixed equipment is selected as panel type (front lock / rear lock), while flexible wiring is chosen as cable type (pre-made / on-site installation). The Octopusconn pre-made cable model supports customization ranging from 0.5m to 10m, and the on-site installation model provides a crimping tool kit, facilitating construction.
• Plate thickness matching: For panel installation, the plate thickness of the equipment (1-5mm) must be confirmed. Octopusconn can customize sealing gaskets according to the plate thickness to ensure that the protection level does not decrease after installation.

Scene-specific precise selection plan (supported by Octopusconn practical case)

Based on the practical experience of serving over 1000 industrial customers through the Octopusconn service, the following selection schemes have been organized for high-frequency scenarios. You can directly refer to and match them:

Scene 1: Connection of Industrial Robot Sensors

• Core requirements : Resistance to vibration, small size, quick plug-in and unplugging.
• Recommended selection : Octopusconn A code 4-pin elbow M12 connector (IP67)
• Product advantages : Threaded locking for anti-loosening, compatible with high-frequency movements of robot arms. Contact components are made of copper-gold plated material, capable of being plugged and unplugged up to 500 times. It has been integrated into production lines of several robot manufacturers.
• Additional note : If you need to transmit both signals and a small amount of power simultaneously, you can choose the 5Pin specification. Octopusconn supports customizing the pin definitions.

Scene 2: Outdoor Connection of Photovoltaic Inverter

• Core requirements : UV resistance, IP68 protection, resistance to high and low temperatures
• Recommended selection : Octopusconn X 8-pin straight M12 connector
• Product advantages : The casing is made of composite engineering plastic, and the sealing gasket is made of fluorine rubber. It can start without failure at -40℃ low temperatures. It has been applied in a 100MW photovoltaic power station project and has no maintenance record for 3 years.
• Additional note : The prefabricated cables provided come with a weather-resistant sheath, which is resistant to aging and stretching, and is suitable for long-term outdoor use.

Scene 3: Equipment Connections in the Food and Beverage Workshop

• Core requirements : Easy to clean, corrosion-resistant
• Recommended selection : Octopusconn all-metal housing M12 connector (Code A 4Pin)
• Product advantages : The brass-plated nickel metal casing can withstand high-pressure and high-temperature rinsing (80℃ hot water, 80 bar pressure). The surface is smooth without any dead corners, meeting the hygiene standards of the food industry. It has been certified by multiple food equipment manufacturers.

Scene 4: Intelligent Warehouse AGV Data and Power Transmission

• Core requirements : Dual-function transmission, vibration resistance, rapid docking
• Recommended selection : Octopusconn Hybrid Coding M12 Connector (Custom Pins)
• Product advantages : Integrated power (2Pin) and data (6Pin) transmission, no need for separate wiring. Dual locking structure is resistant to vibration, suitable for AGV frequent start-stop and moving scenarios. Supports customized docking interfaces to ensure perfect matching with AGV body.

Scene 5: Connection of Process Control Equipment in the Chemical Plant

• Core requirements : Corrosion resistance, IP68 protection, explosion-proof
• Recommended selection : Octopusconn corrosion-resistant model M12 connector (Code B 3Pin)
• Product advantages : The casing is made of engineering plastic with anti-corrosion coating, and the contact components are made of pure copper plated with gold. They can withstand acidic and alkaline environments and have been applied in process control projects in chemical industrial parks.

Octopusconn M12 Connector Selection Toolkit

To facilitate quick selection, Octopusconn offers the following free tools and support to enhance the selection efficiency:

1.Selection Parameter Comparison Table (Available for Download)

2.One-on-one technology selection service

The Octopusconn 20+ person R&D team offers 7×24-hour technical support. Based on the scene parameters and equipment drawings provided by the customers, they can freely formulate selection plans and pin definition diagrams for free.

Avoiding Common Mistakes in Equipment Selection (Summarized by the Octopusconn Technology Team)

Based on years of experience in equipment selection consultation, the following misconceptions need to be particularly avoided to prevent equipment failures due to incorrect selection:

Misconception 1: Focusing solely on the price while ignoring the protection level

• Risk: Using IP65 products in humid environments may result in water ingress causing short circuits.
• Solution: Based on the minimum protection level of the scenario being IP67, for harsh environments, it is directly upgraded to IP68/IP69K. The price gradient of Octopusconn's products of various protection levels is reasonable, and its cost performance is superior to that of imported brands.

Misconception 2: Mixed use of codes (for example, using A code for Ethernet transmission)

• Risks: Inconsistent signal transmission, failure to meet speed standards, and even equipment damage.
• Solution: Match the encoding strictly according to the transmission type. If there is any doubt, consult the technicians of Octopusconn for free guidance on encoding selection.

Misconception 3: Ignoring material compatibility (such as using common materials for chemical environments)

• Risk: Short-term corrosion failure, affecting equipment operation
• Solution: For chemical/harsh marine environments, choose stainless steel casing with fluorine rubber gasket. Octopusconn provides a material selection comparison table to clearly indicate the suitable materials for different scenarios.

Misconception 4: Failure to consider the number of plug-ins and unplugs (select regular model for high-frequency scenarios)

• Risk: The contact parts wear out too quickly, resulting in signal interruption.
• Solution: For high-frequency insertion and removal scenarios (≥100 times per year), choose copper-gold plated contacts. For Octopusconn, the insertion and removal frequency is ≥500 times, which meets the requirements for frequent maintenance.
