Core Count : 2P, 3P, 4P, 5P, 6P, 7P, 8P
Category : Male
Direction : 90°
Applications : Power, Signal

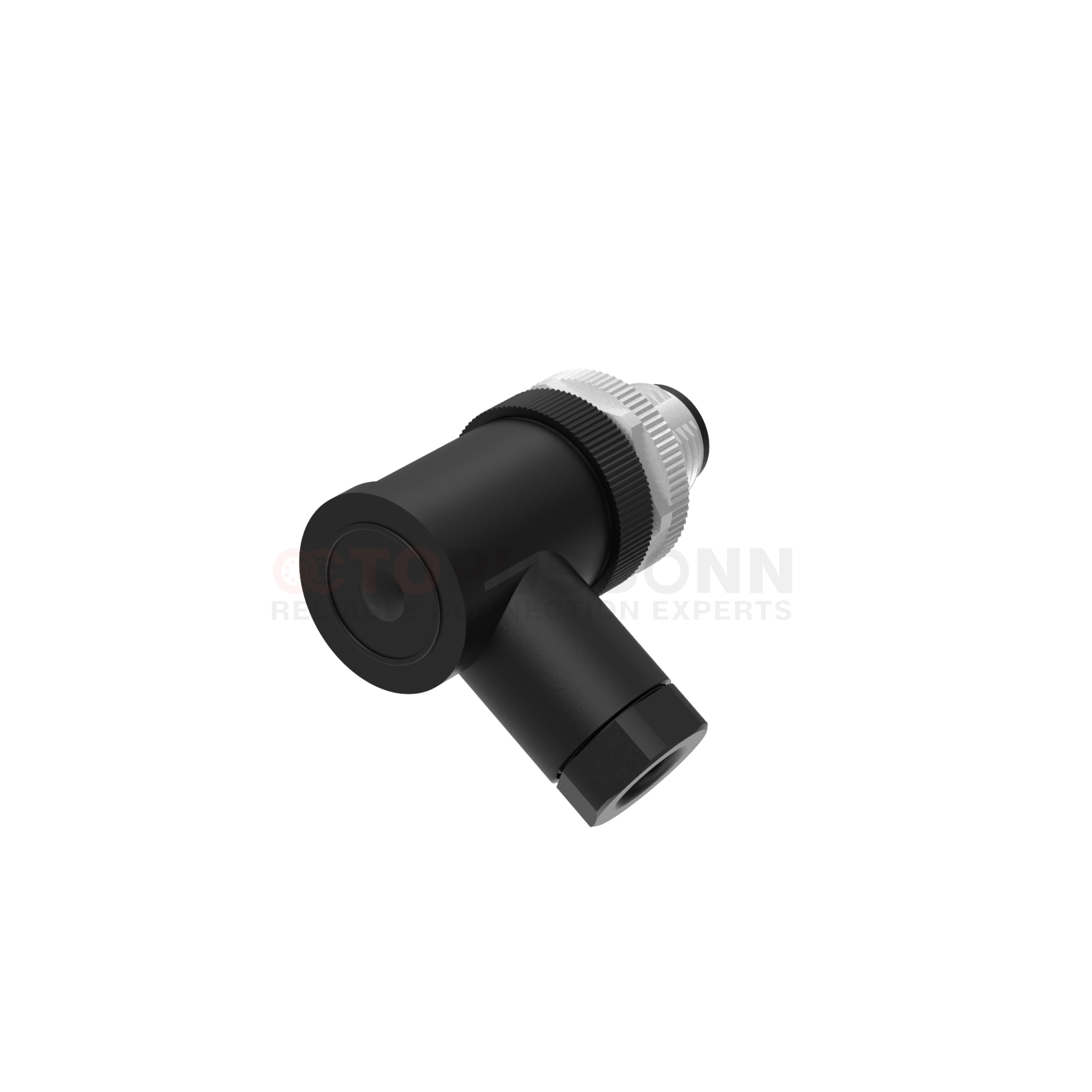

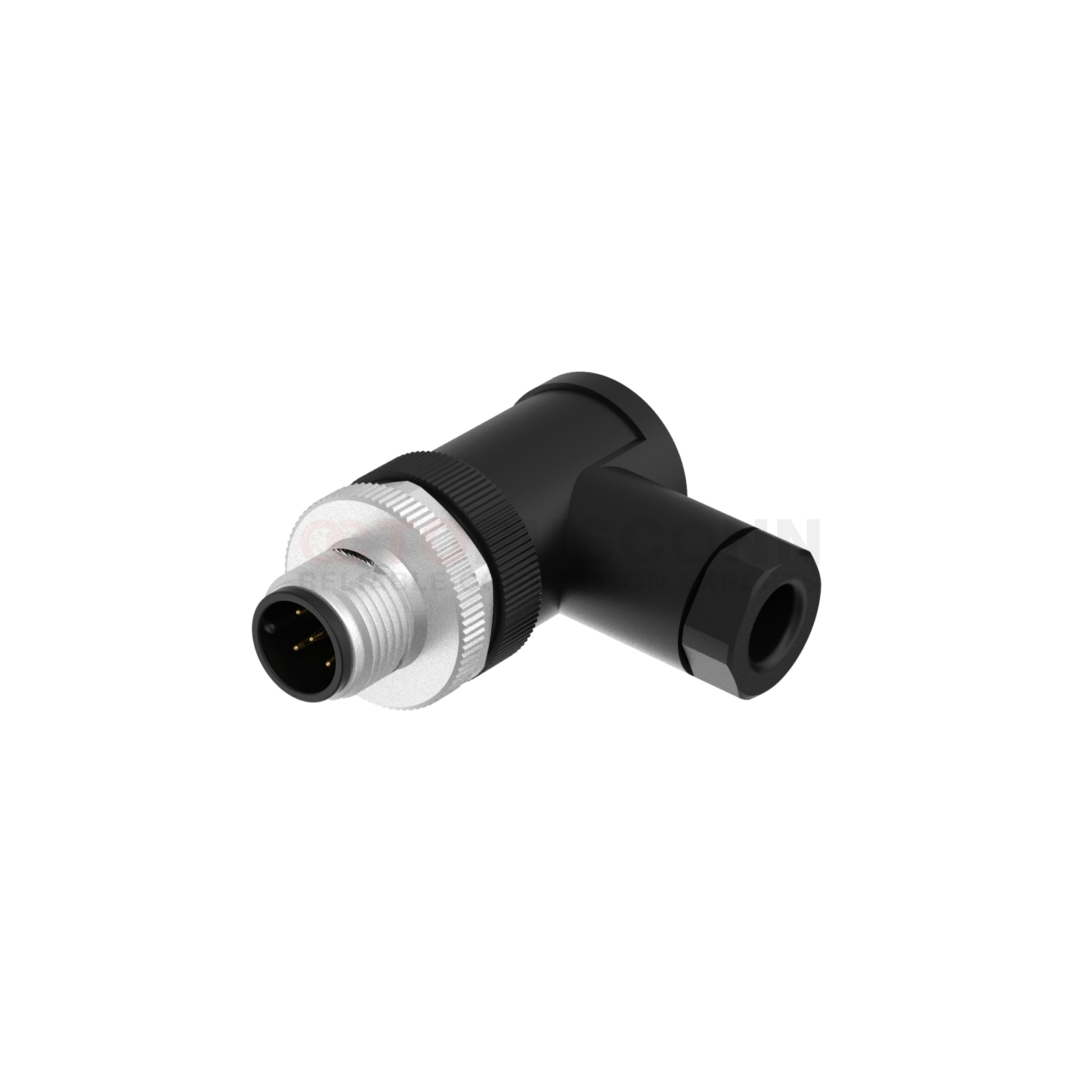

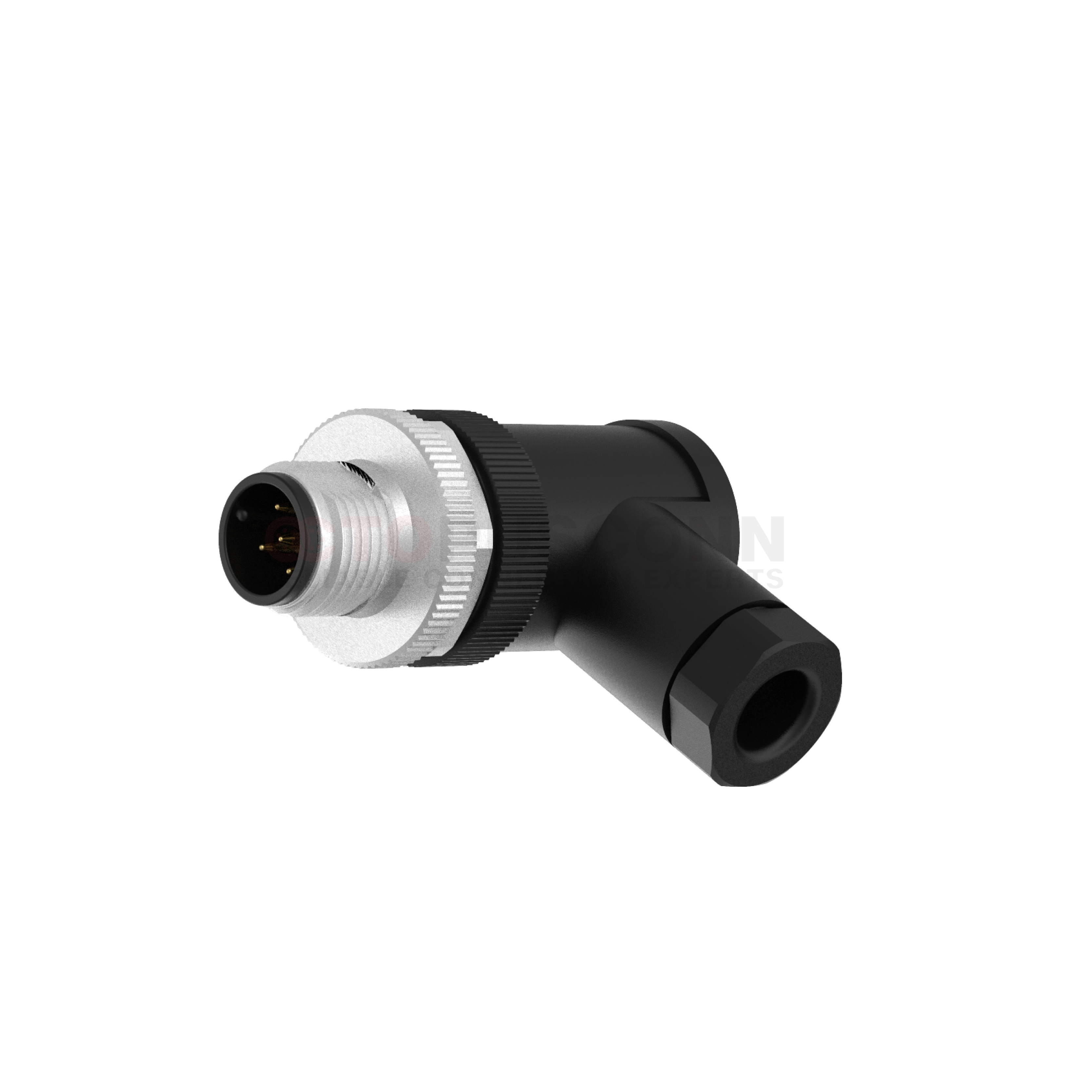

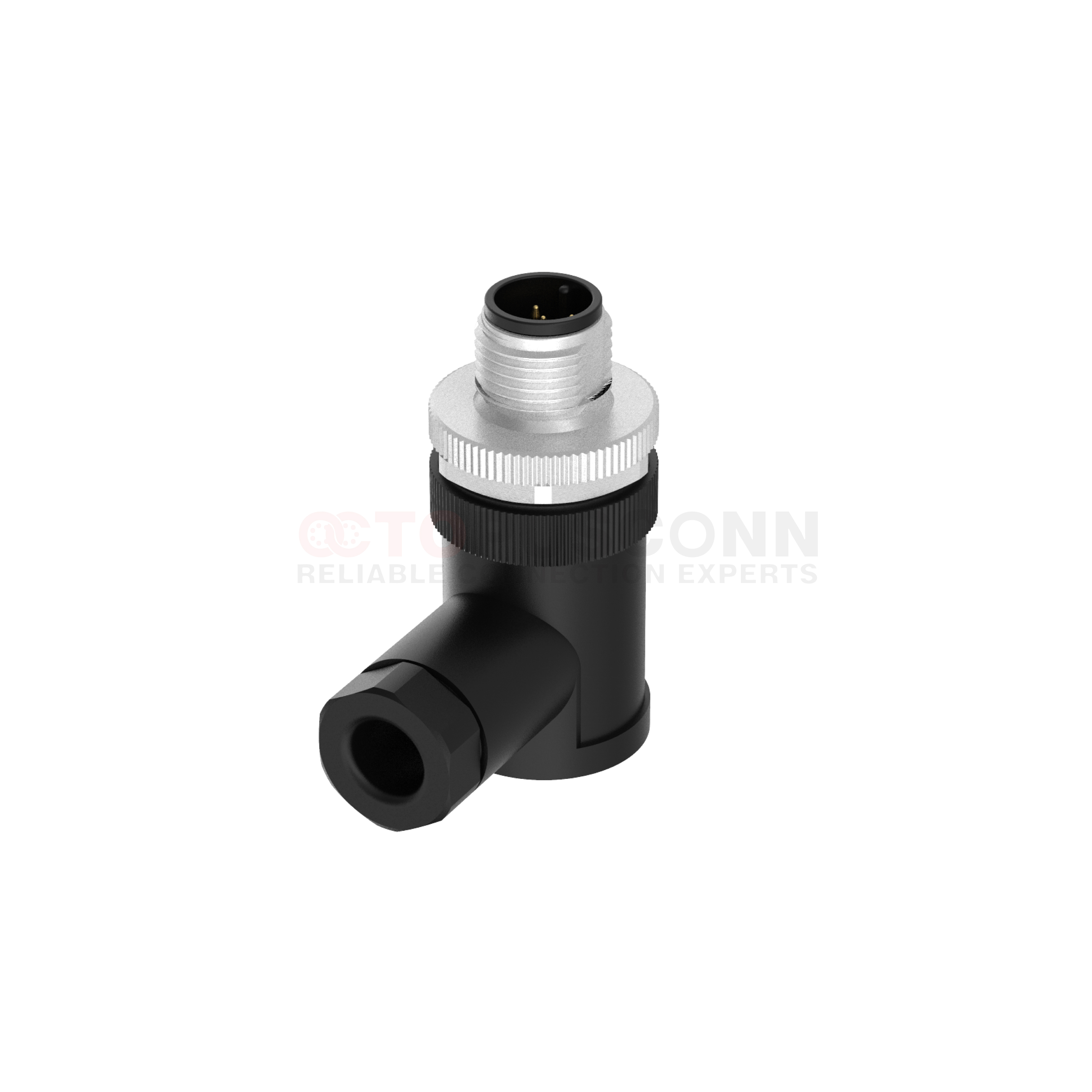

Elbow plastic screw type:

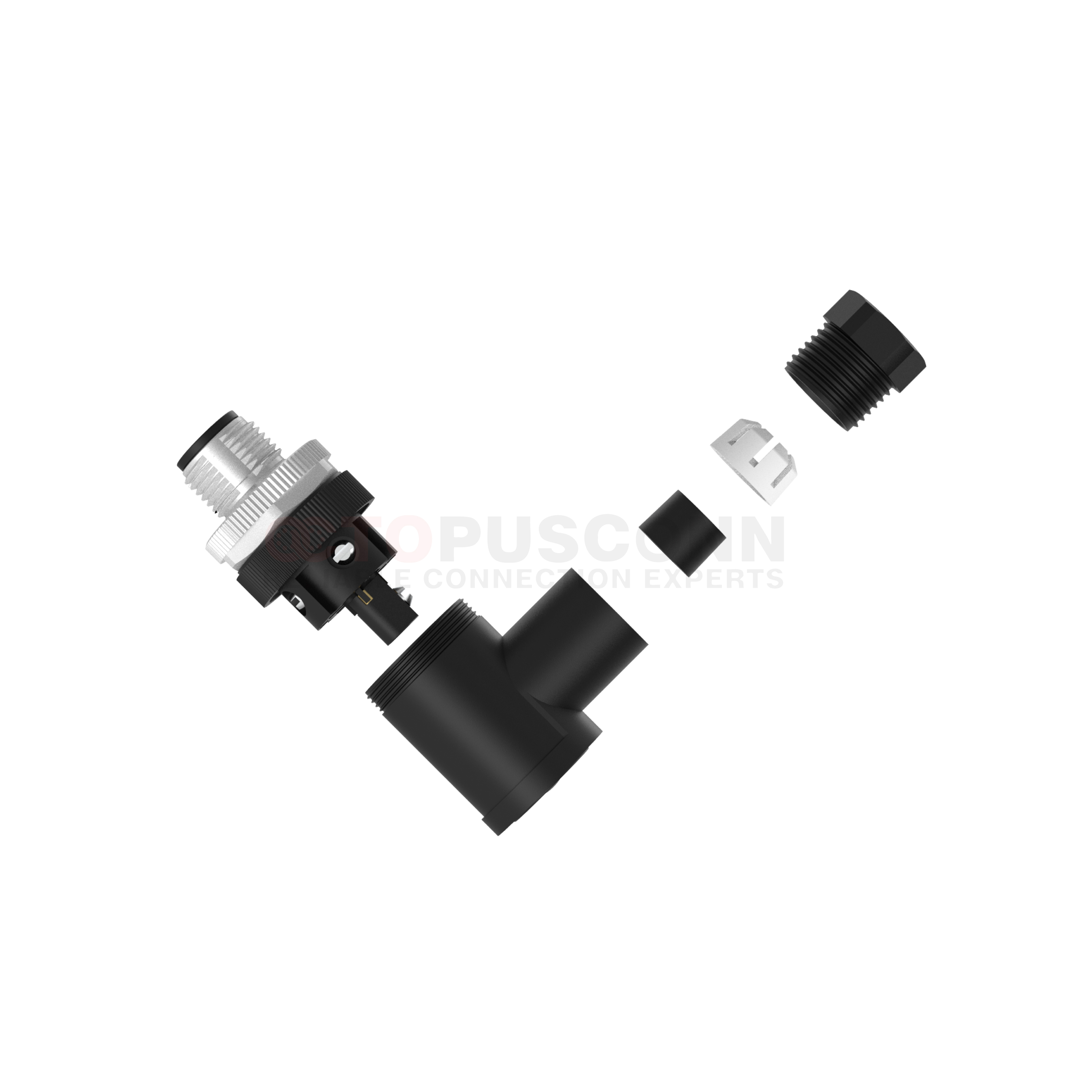

Structural design: Adopting a 90° right-angle outlet design, it can prevent the cable from being damaged due to bending, and is suitable for scenarios with limited space such as equipment corners and narrow cavities. The plastic housing is of an assembled design, which can be combined with board installation and assembly type, further enhancing the flexibility of assembly. Screw connection method: Tightening the wire with screws, no need for professional welding tools, and the on-site assembly and maintenance efficiency is high. Protection and environmental adaptability: Protection grade reaches IP67, capable of withstanding dust and short-term immersion; working temperature range is -40°C to 85°C, the housing is made of PA9T material, the contact pieces are brass plated gold, and the weather resistance and conductivity are balanced. The insertion and removal cycle is ≥ 50 times, meeting the usage frequency requirements of conventional industrial scenarios. Application scenarios: Suitable for industrial automation sensor/actuator connections, internal wiring of small control cabinets, and wiring of outdoor lighting equipment, etc.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12AM-02U1LJZNR102 |
2
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AM-03U1LJZNR102 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AM-04U1LJZNR102 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AM-05U1LJZNR102 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| MC12AM-06U1LJZNR102 |
6
|
2A
|
30V
|
30V
|
24
|
0.25
|
| MC12AM-08U1LJZNR102 |
8
|
2A
|
30V
|
30V
|
24
|
0.25
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
