Core Count : 2P, 3P, 4P, 5P, 6P, 7P, 8P, 12P, 17P
Category : Female
Installation Method : Welding wire type
Direction : 180°
Applications : Power, Signal

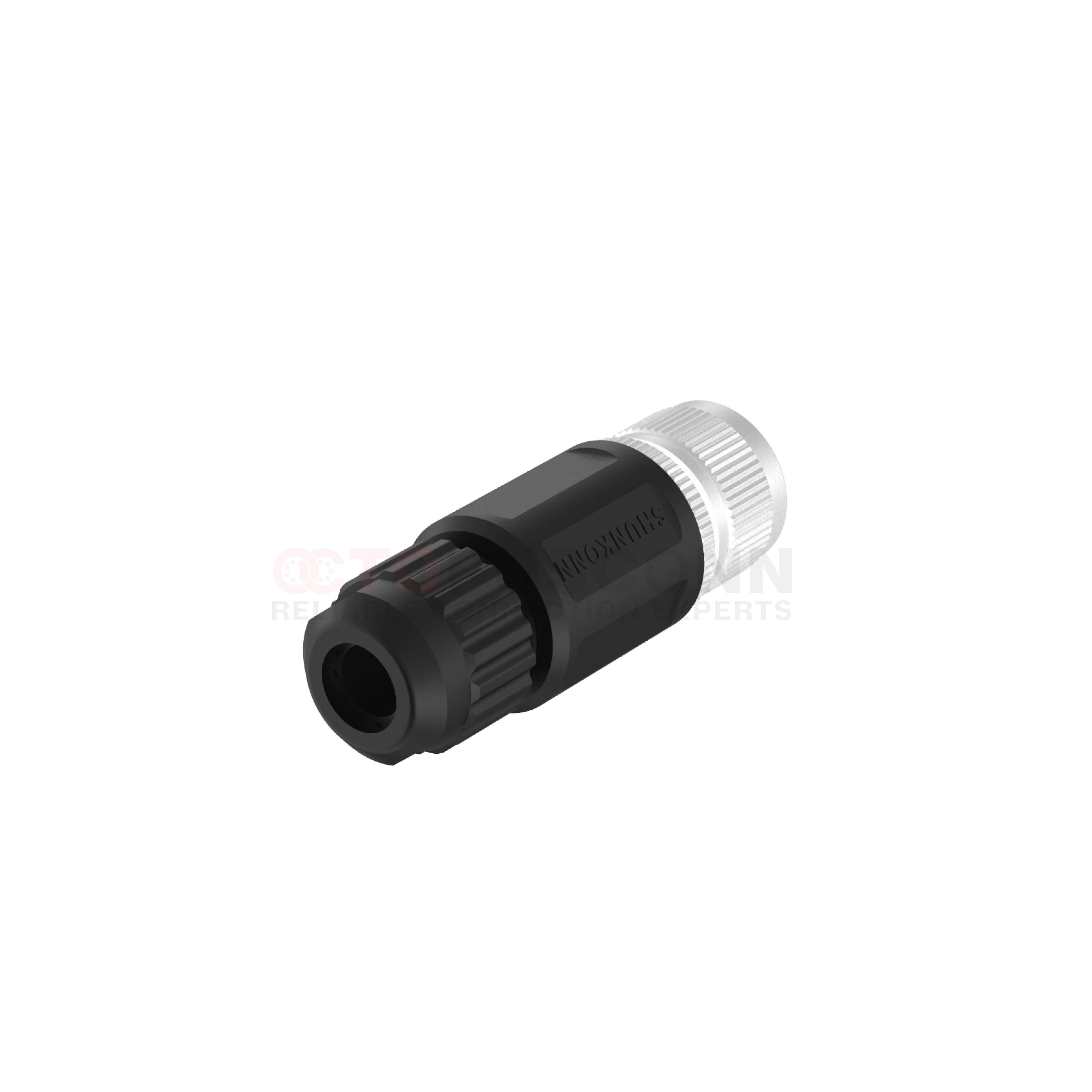

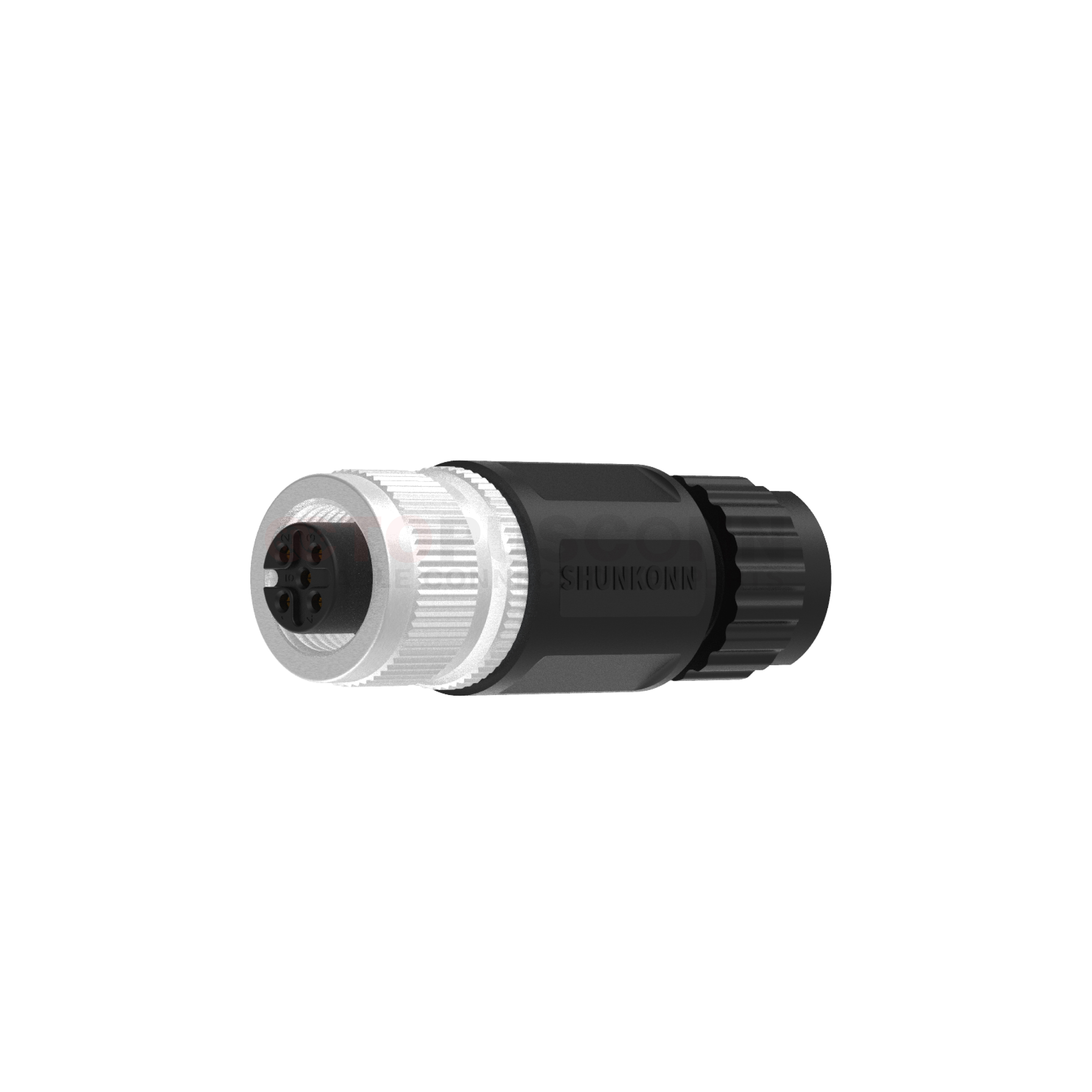

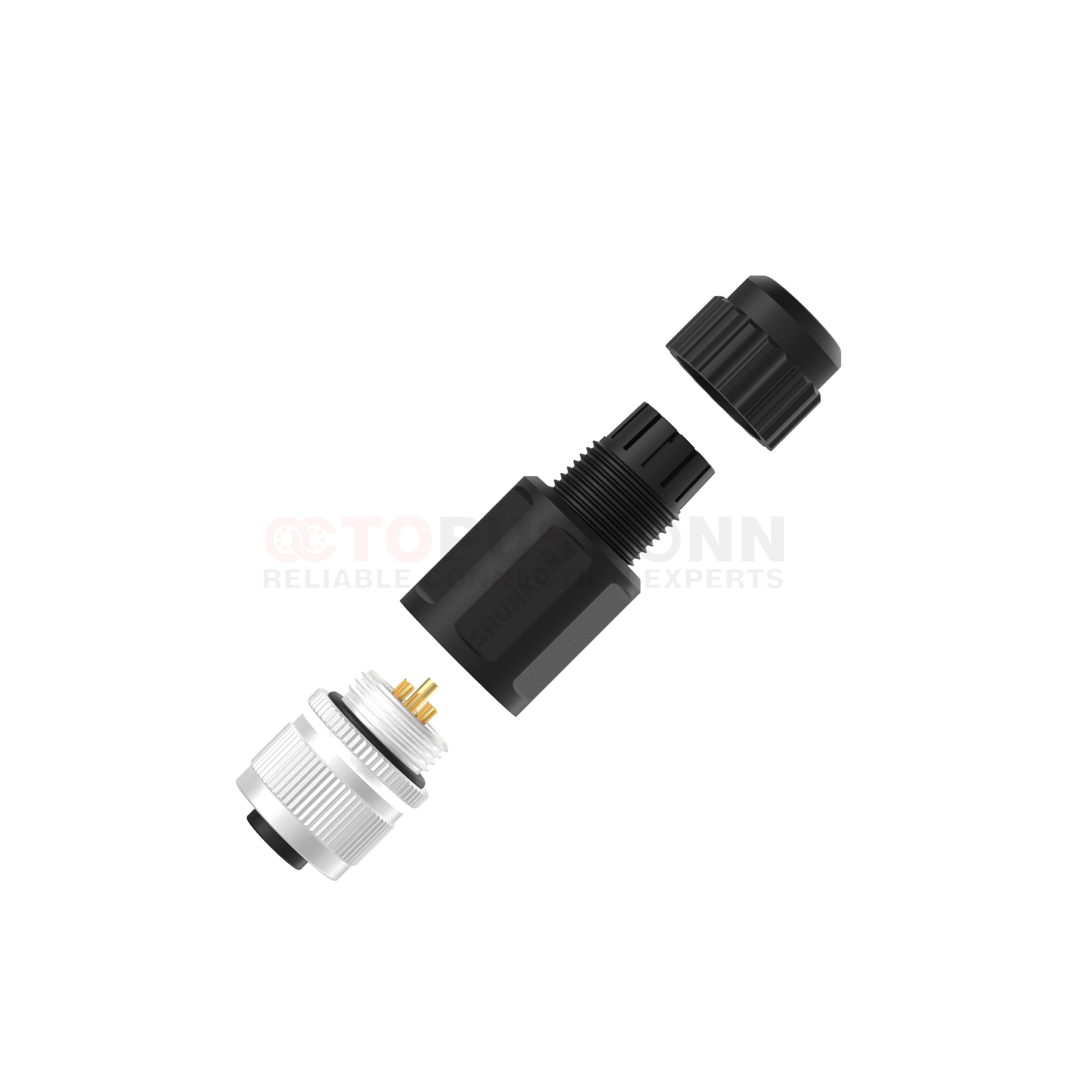

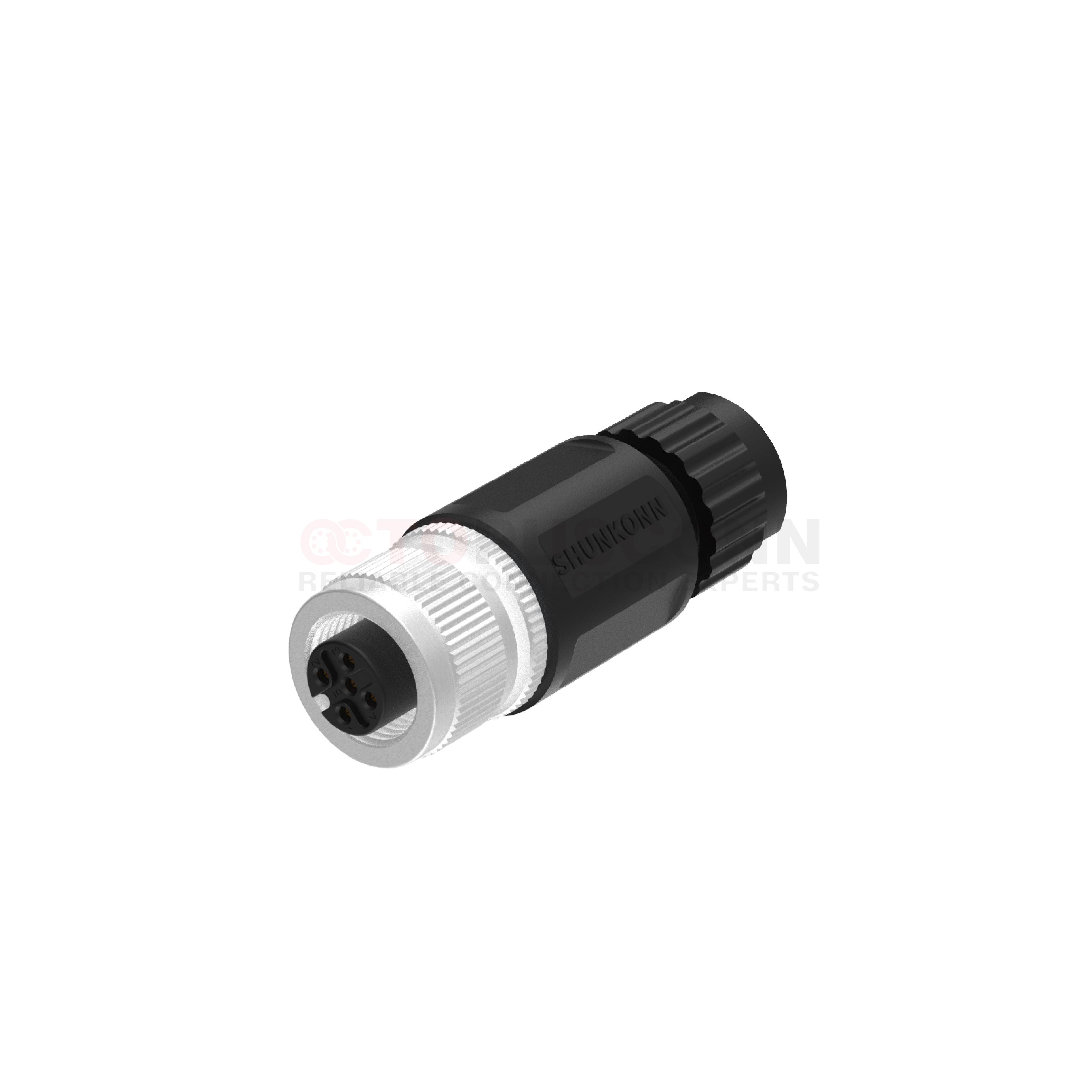

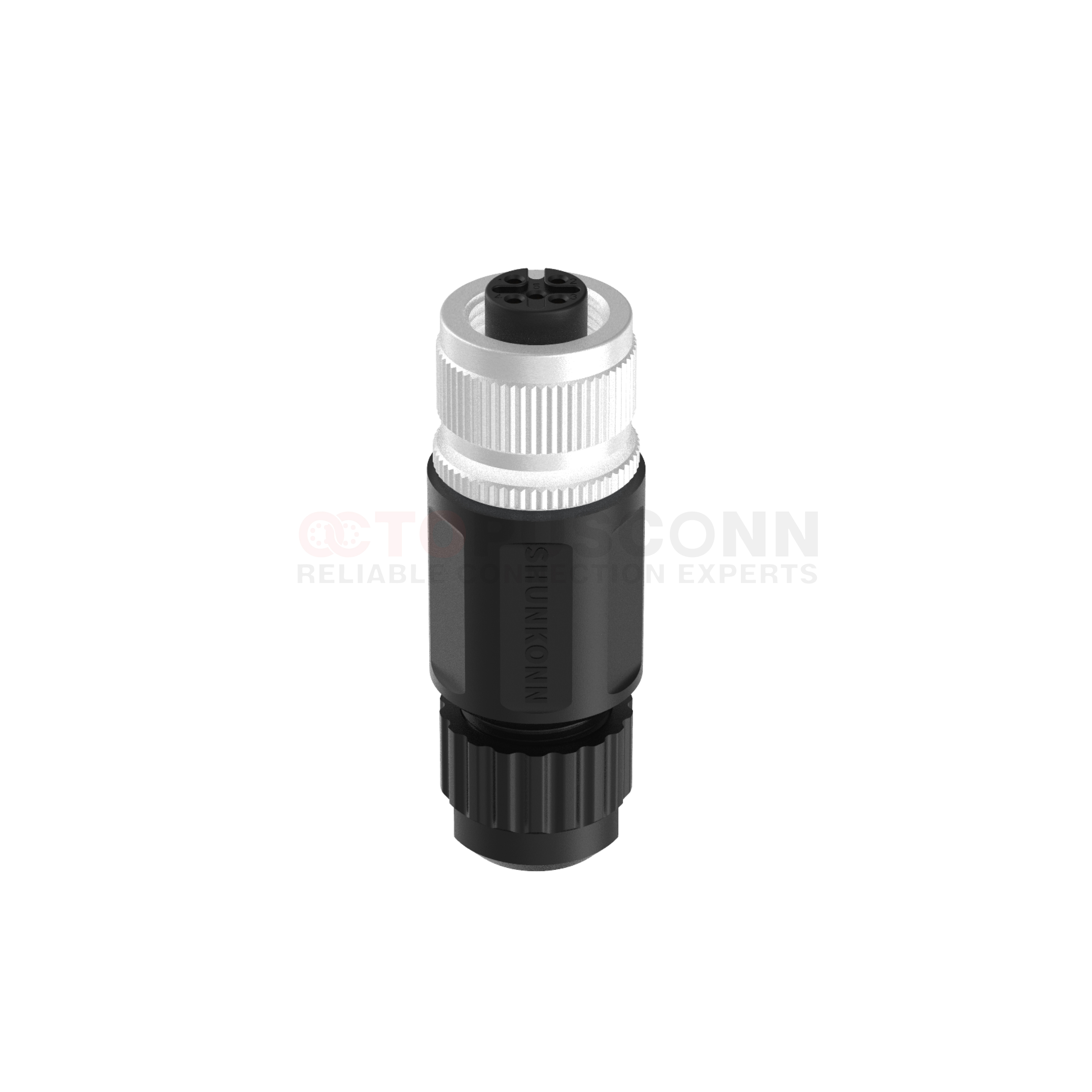

Straight-welding type plastic:
Structural design: Adopting a 180° direct-out-line design, the cables can extend naturally, avoiding damage from bending and reducing signal attenuation. It is suitable for scenarios where there is ample space and the cables need to be connected in a straight line. Plastic housing: The housing is made of PA9T plastic material, featuring light weight and low cost. It also has certain corrosion resistance and mechanical strength, capable of meeting the general usage requirements in industrial environments. Welding connection: The conductors are connected to the contact pieces of the connector through welding. This connection method provides reliable electrical connection performance, reduces contact resistance, and ensures stable transmission of signals and current. Working temperature range: Usually -40℃ to +85℃, capable of adapting to the temperature environments of most industrial sites. Application scenarios: Widely used in industrial automation, mechanical equipment, and power systems.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12AF-02U1LSLNS101 |
2
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AF-03U1LSLNS101 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AF-04U1LSLNS101 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AF-05U1LSLNS101 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| MC12AF-06U1LSLNS101 |
6
|
2A
|
30V
|
30V
|
24
|
0.25
|
| MC12AF-08U1LSLNS101 |
8
|
2A
|
30V
|
30V
|
24
|
0.25
|
| MC12AF-12U1LSLNS101 |
12
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
| MC12AF-17U1LSLNS101 |
17
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
