Available Pin Counts : 5P
Type : Female
Direction : 180°
Applications : Power, Signal Transmission
Straight-type all-metal screw-type:
All-metal housing design: The housing is made of nickel-plated brass material, which not only significantly improves mechanical strength, but also significantly enhances resistance to impact, wear, and electromagnetic interference. It can also adapt to harsh environments such as high temperatures and oil stains. The overall design is a 180° straight type, suitable for linear wiring scenarios, saving installation space. The all-metal assembly process makes the structure more compact, and the assembly is precise and stable. Coding and locking method: Continues the B coding design, which can precisely distinguish from other coding M8 connectors, completely avoiding equipment failure caused by incorrect insertion; the connection uses screw locking combined with M8 standard threads, and is paired with metal coupling nuts. After locking, it is not easy to loosen due to equipment vibration, further ensuring the reliability of the connection. Widely used in harsh industrial scenarios. For example, in industrial automation, it is used for the connection of sensors, actuators and PLC control systems; for the signal transmission of high-precision equipment such as industrial cameras and encoders; for electrical connections of high-frequency vibrating equipment such as machine tools and robots; it can also be used in special working conditions such as new energy vehicle production lines, food processing equipment, etc., which are subject to high temperatures, oil stains or require frequent cleaning, as well as some connection scenarios for sensitive precision instruments that are sensitive to electromagnetic interference.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
MC08BF-05N4LJZSS1401
|
5
|
3A
|
60V
|
60V
|
24
|
0.25
|
|

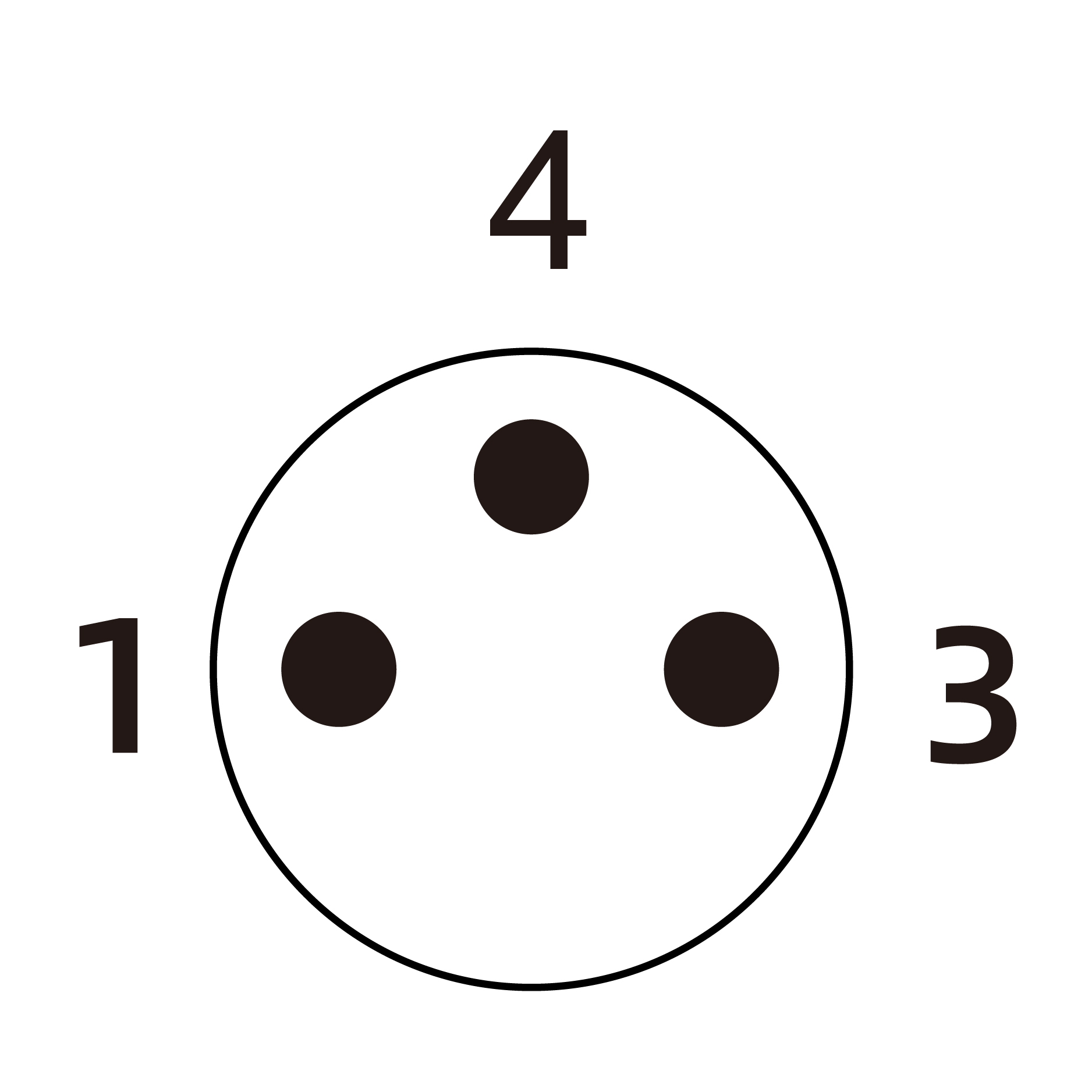

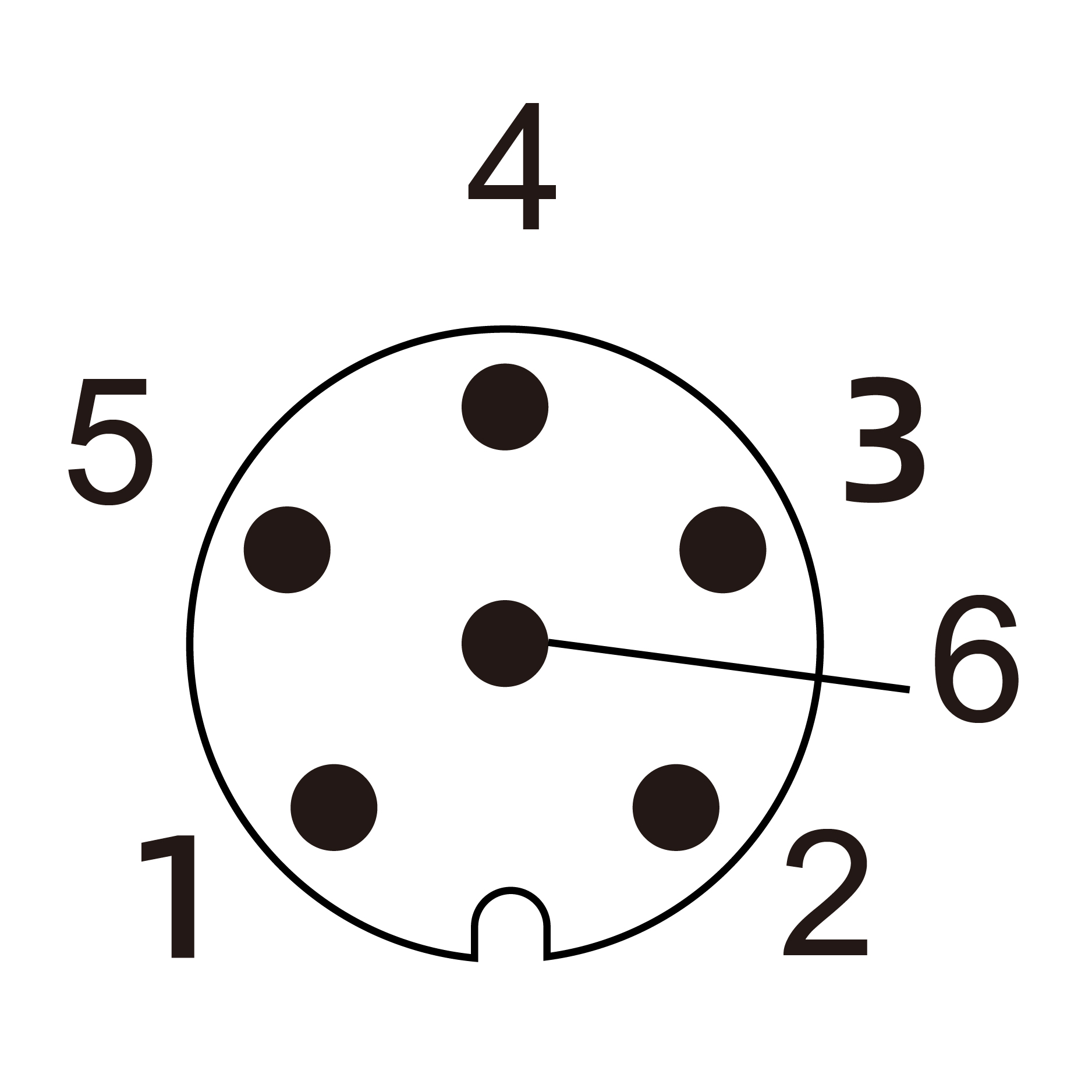

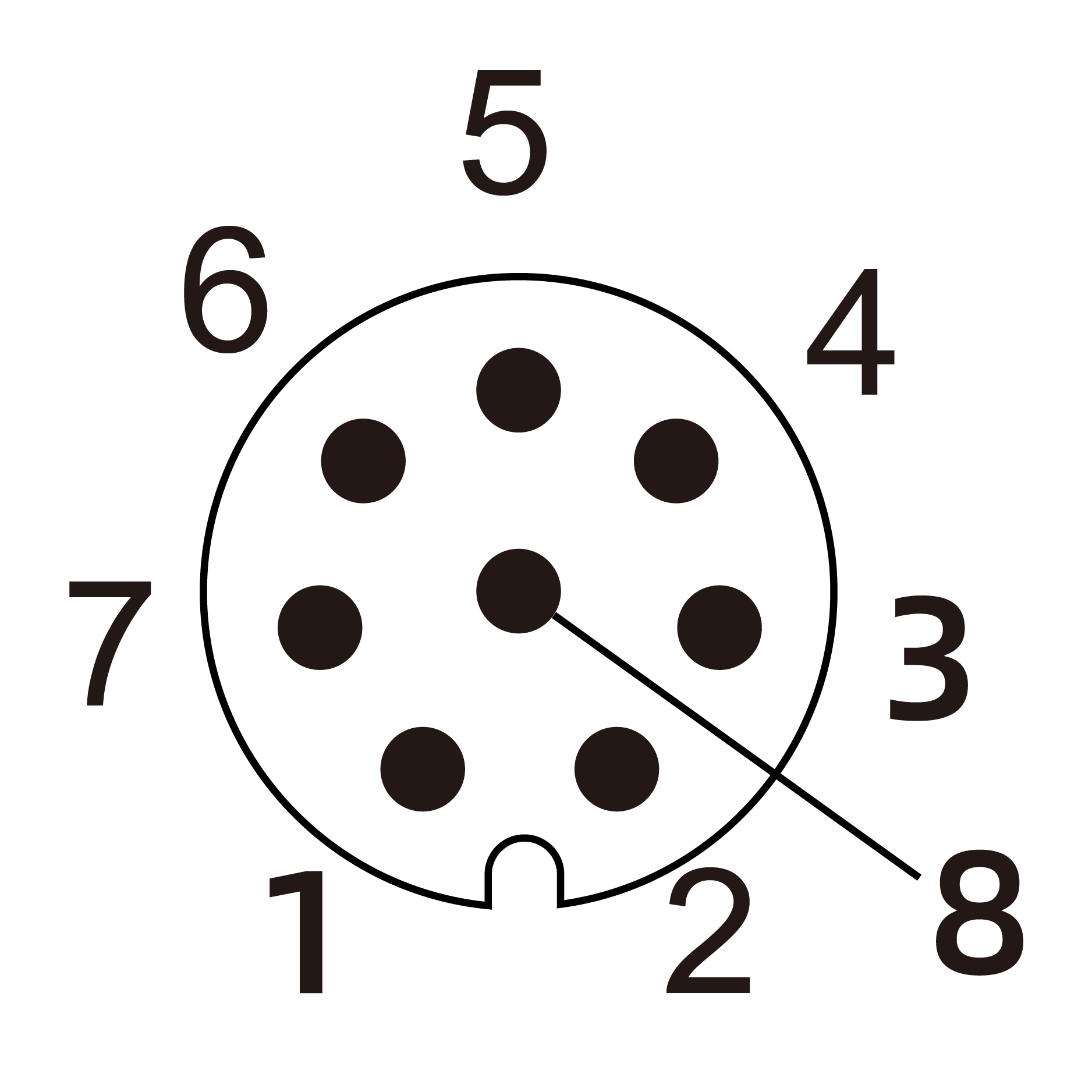

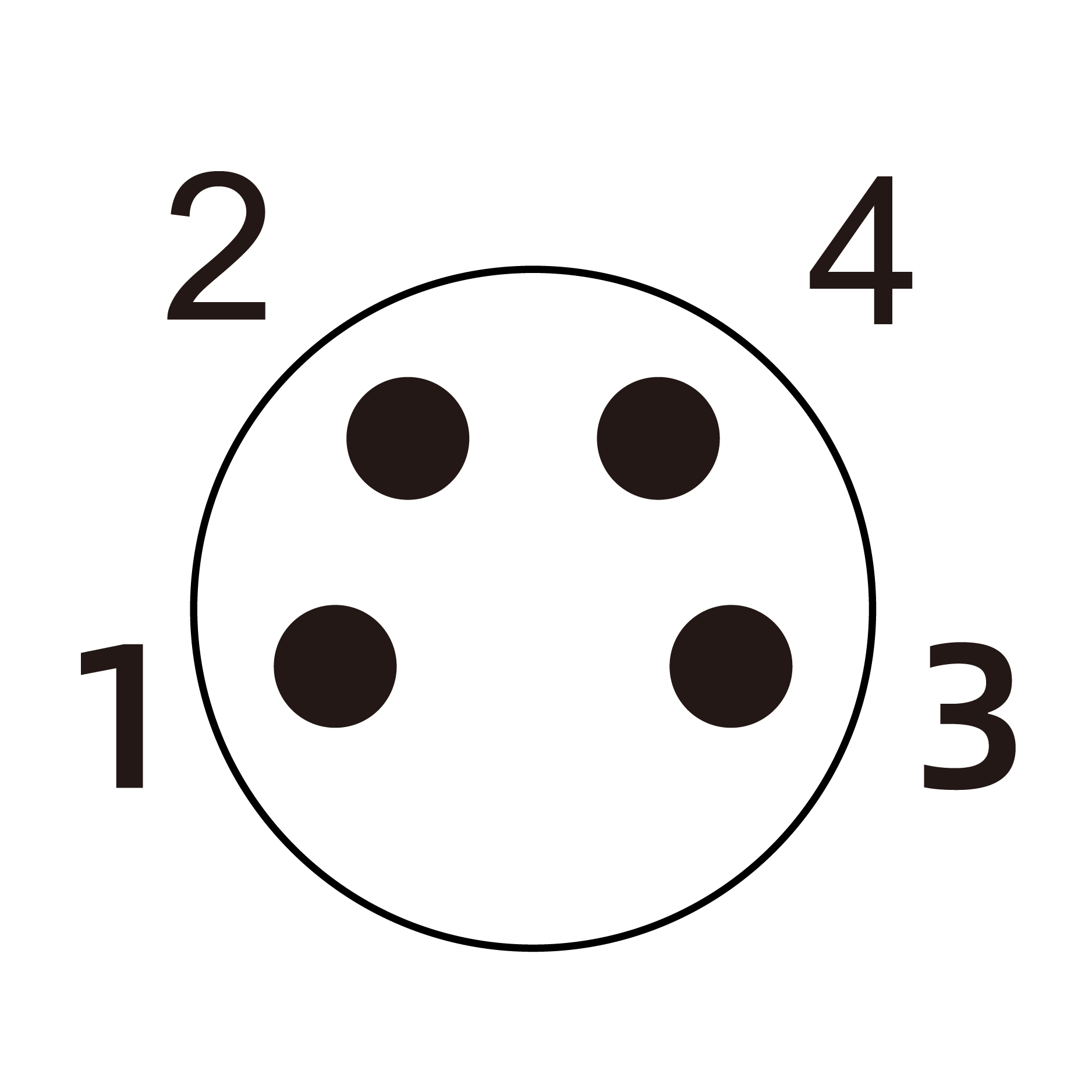

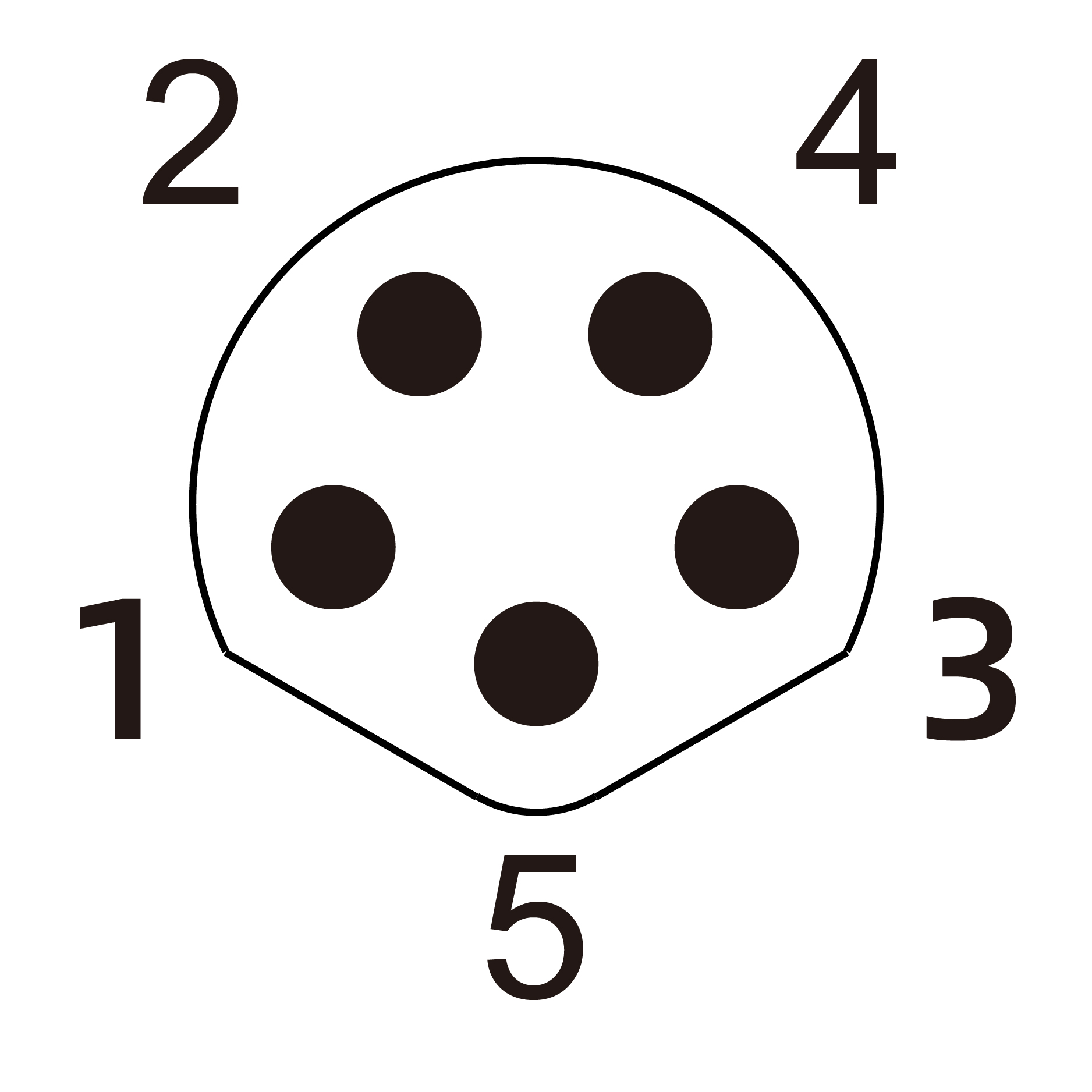

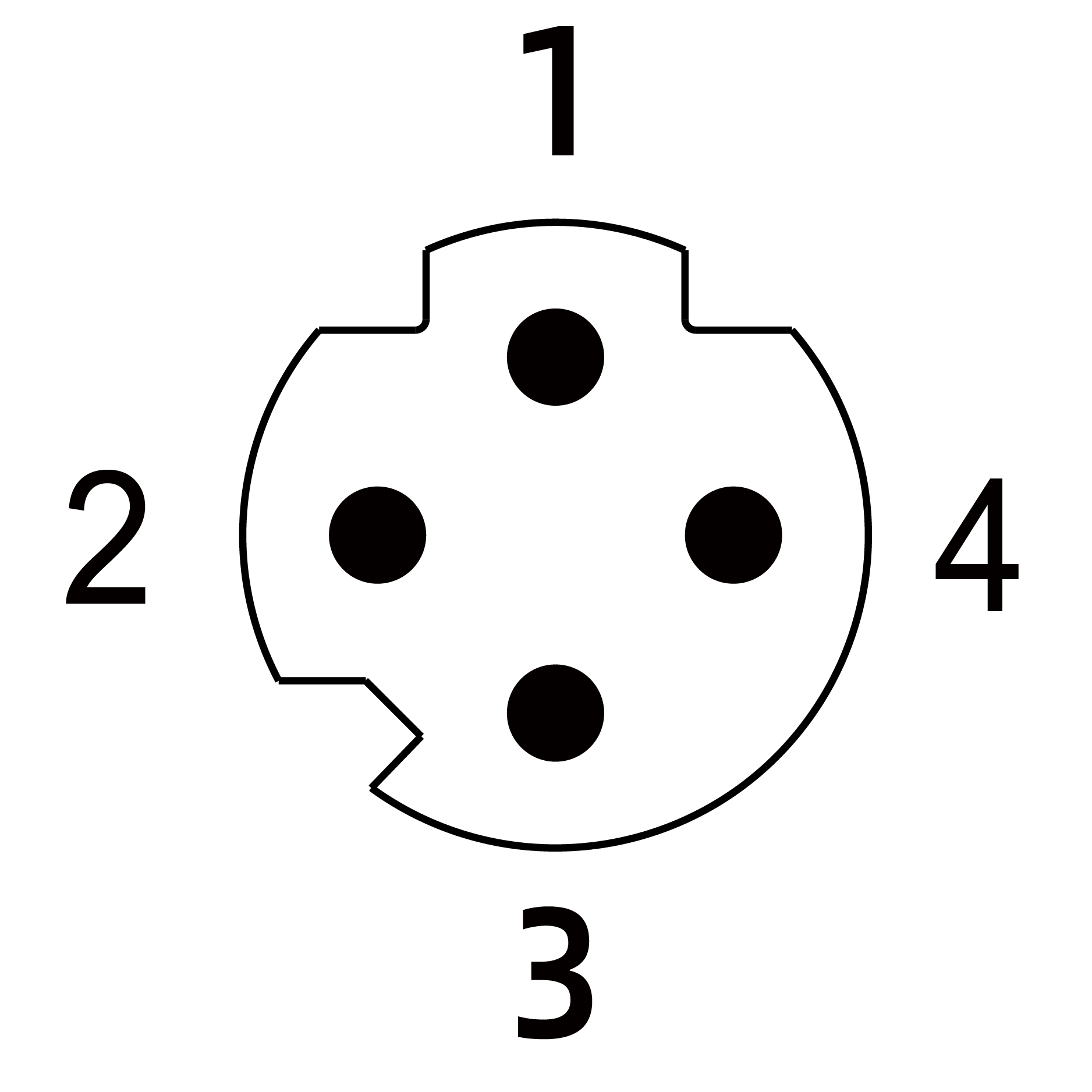

| Core | 3A | 4A | 6A |
| male end |
|
|
|
| 8A | 5B | 4D | |
|
|
|
|
|

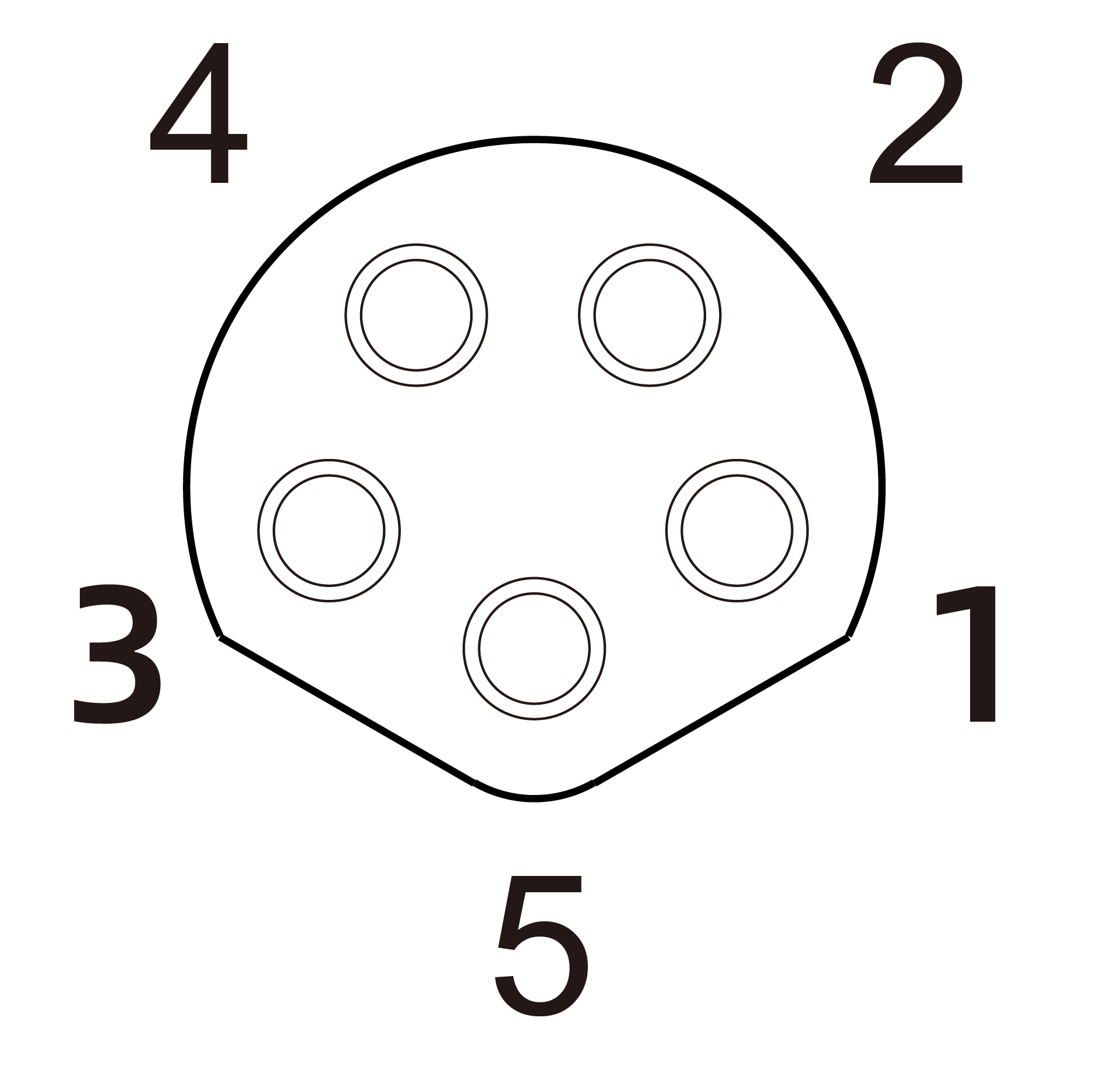

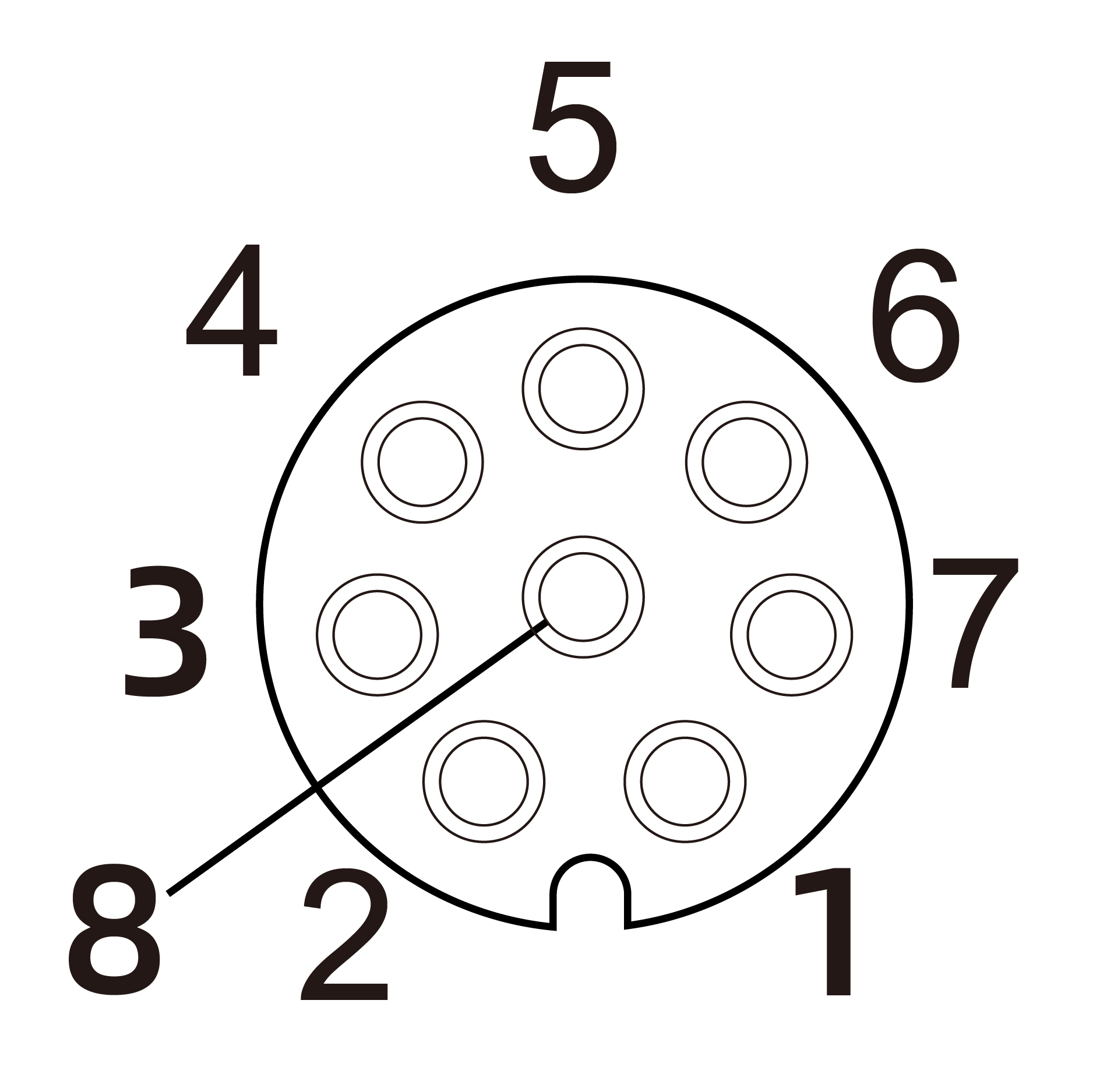

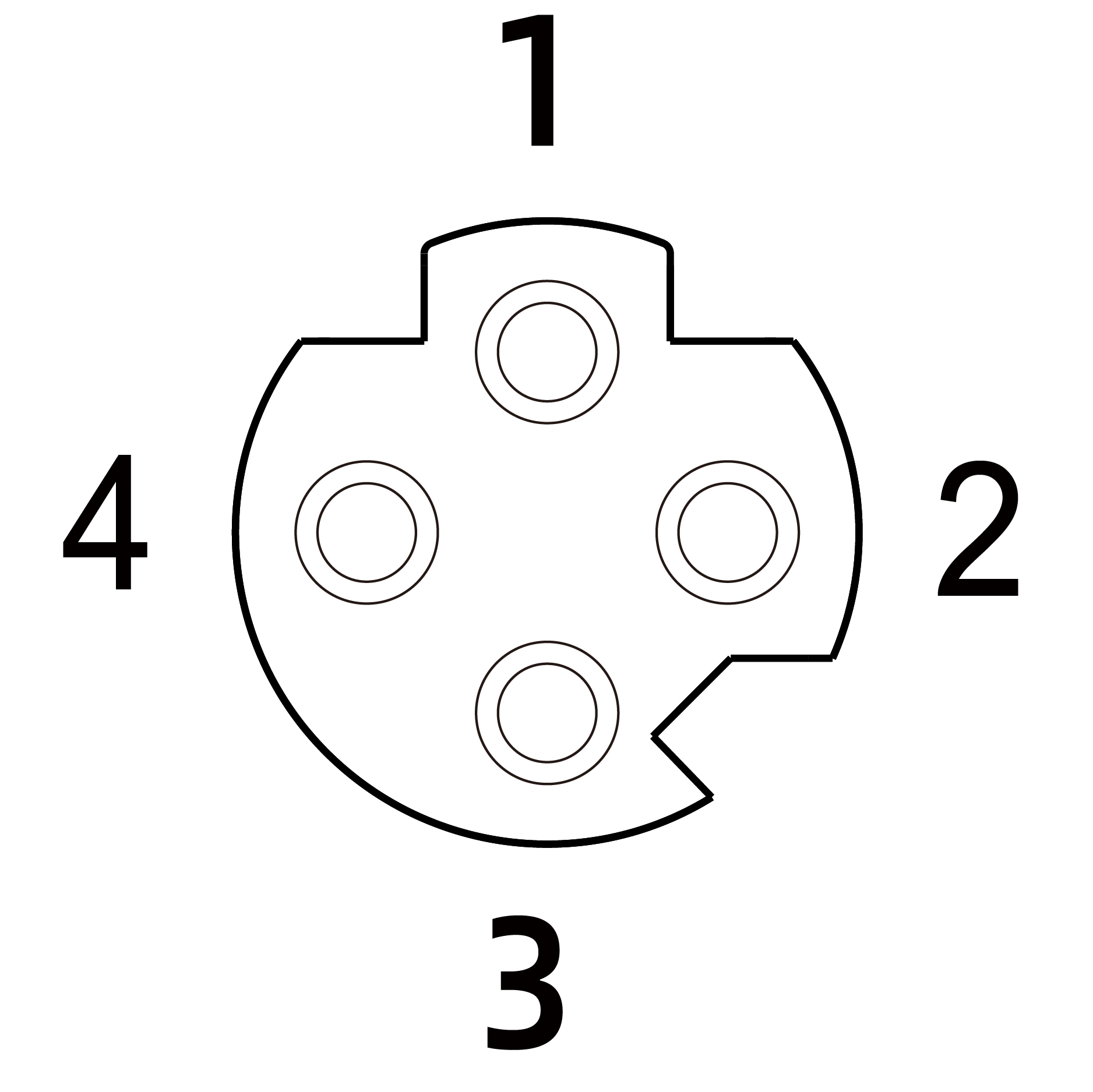

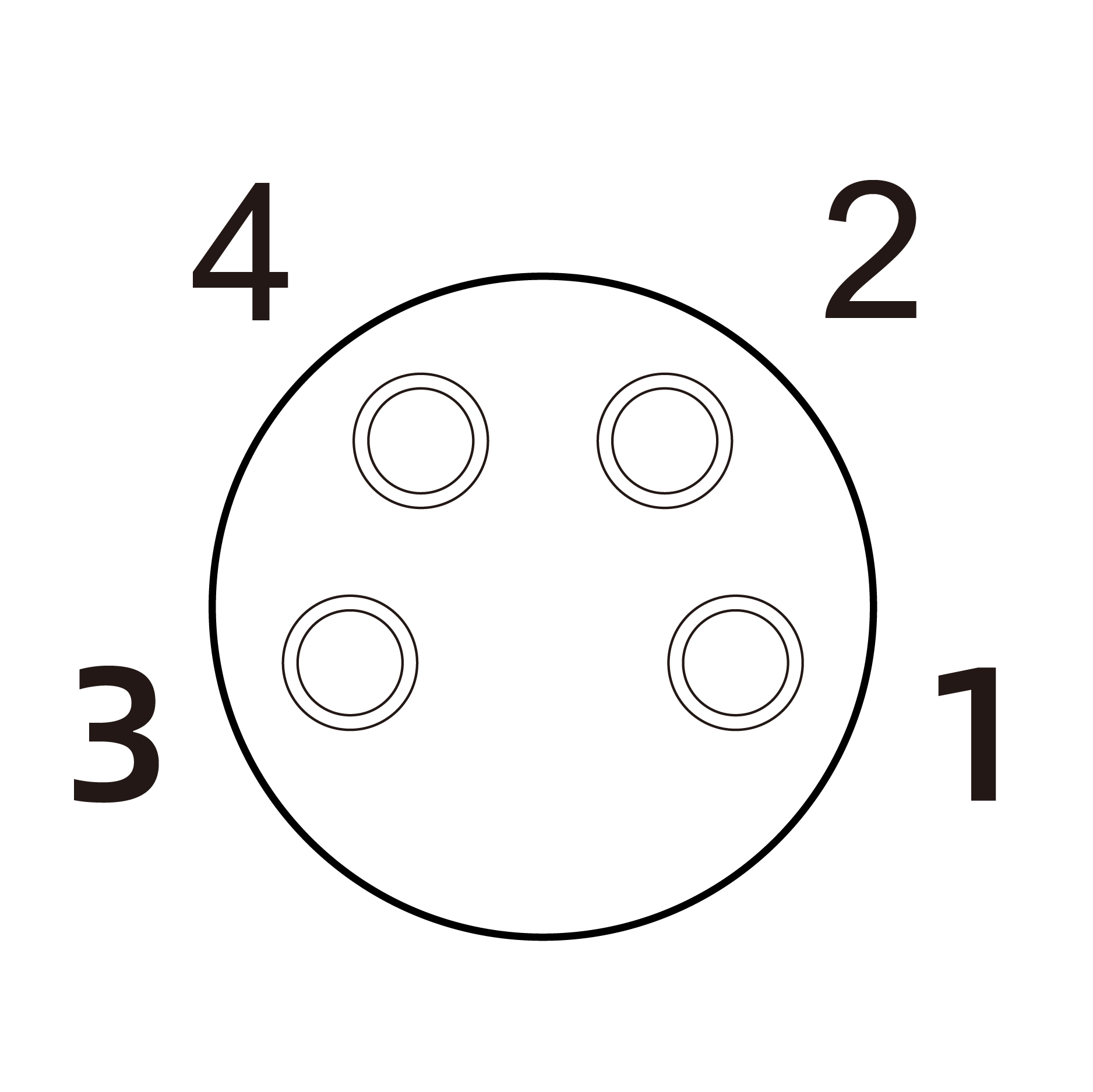

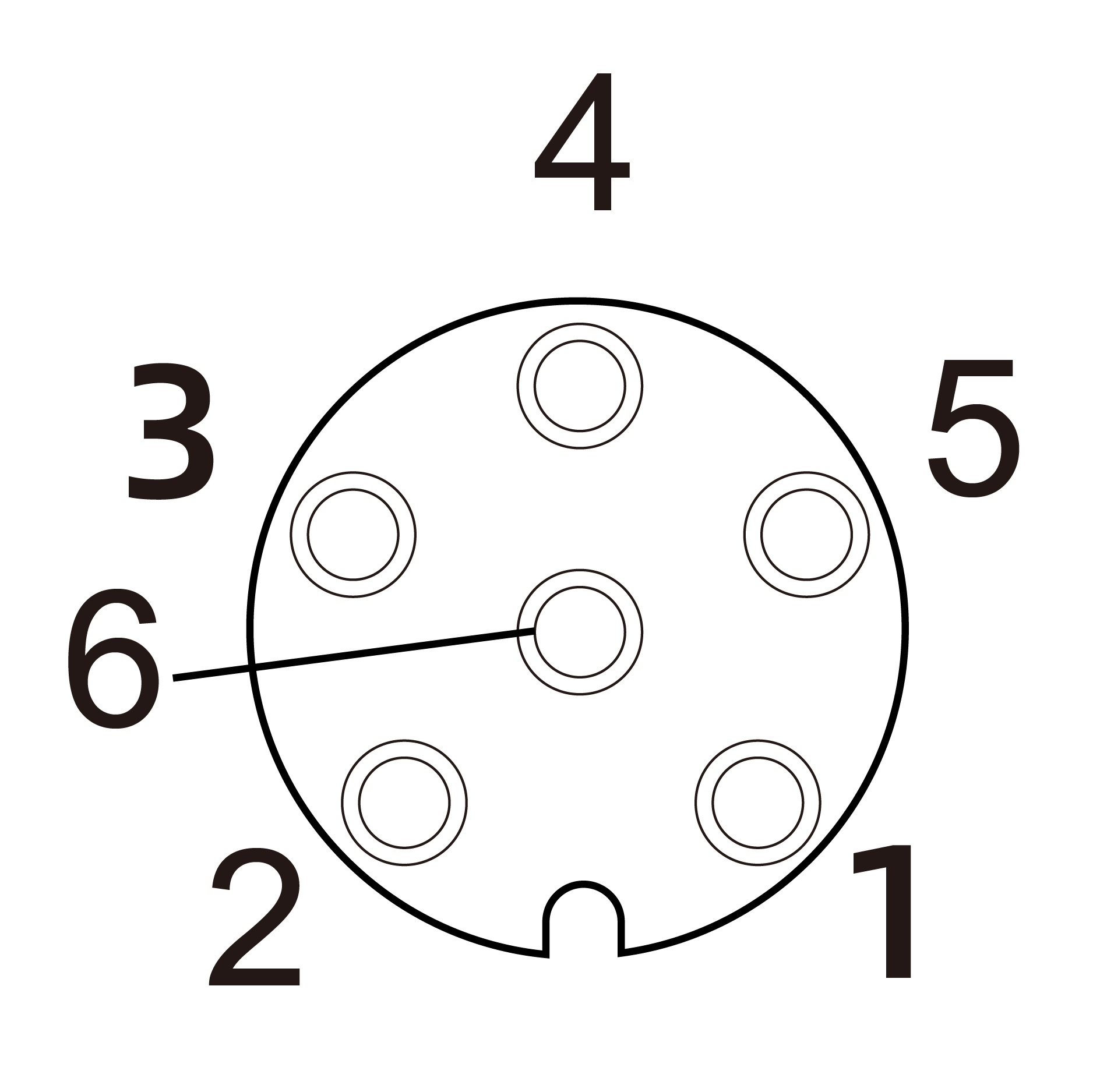

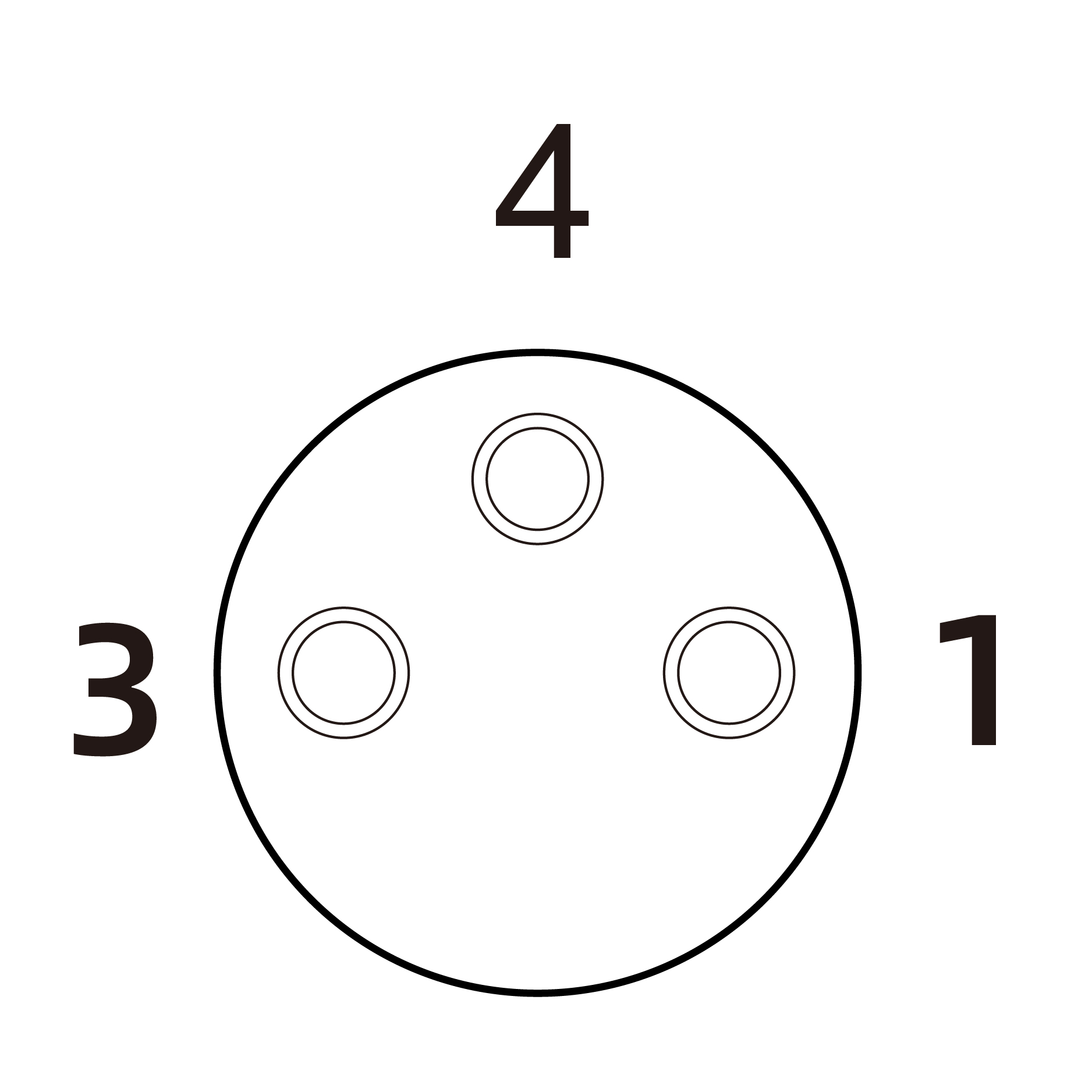

| Core | 3A | 4A | 6A |
| female connector |
|
|
|
| 8A | 5B | 4D | |
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
